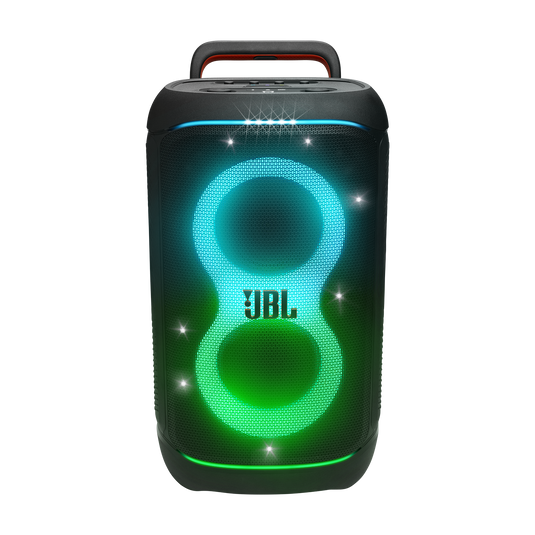

JBL PartBox 520

Description

Specifications:

General Specifications

Output power (W) 400

Power Input 100 – 240 V ~ 50-60 Hz

Signal-to-Noise Ratio > 80dB

Audio Specifications

Frequency Response 40 Hz – 20 kHz

Transducer 2 x 7.5 inch (208 mm) woofers, 2 x 1 inch (25 mm) dome tweeters

Dimensions

Dimensions (Width x Height x Depth) (cm) 42 x 77 x 37

Dimensions (Width x Height x Depth) (in) 16 x 30 x 15

Weight (kgs) 26

Weight (lbs) 56

Control and Connection Specifications

Bluetooth Profile A2DP V1.4, AVRCP V1.6

Bluetooth Transmitter Frequency Range (GHz) 2.4 - 2.4835

Bluetooth Transmitter Modulation GFSK, π/4 DQPSK, 8DPSK

Bluetooth Transmitter Power ≤ 18 dBm (EIRP)

Bluetooth version 5.4

USB-C Charge Out PDO (5 V / 3 A, 9 V / 3 A, 15 V / 2 A, 20 V / 1.5 A), PPS (5 - 11 V / 2.7 A, 5 - 16 V / 1.85 A)

USB Input (dBFS) -12

Aux-In 250 mV RMS (3.5 mm connector)

Mic-In 20 mV RMS

Guitar-In 100 mV RMS

Line-In 100 mV RMS

Bluetooth Input (dBFS) -12

USB Format FAT16, FAT32

Portable Speaker Specs - Supported Music File Formats .MP3, .WAV, .WMA, .FLAC

Battery

Battery Type JBL BATTERY 600, Li-ion 99.02 Wh

Cable Length (ft) 6.6

Cable Length (m) 2

Cabel Type AC power cable

Charging time (hrs) 3

Maximum music playing time (hrs) 15

Features

AI Sound Boost Yes

Comes with App Yes

Lightshow Yes

Supports Auracast Yes

JBL PartyBox App true
